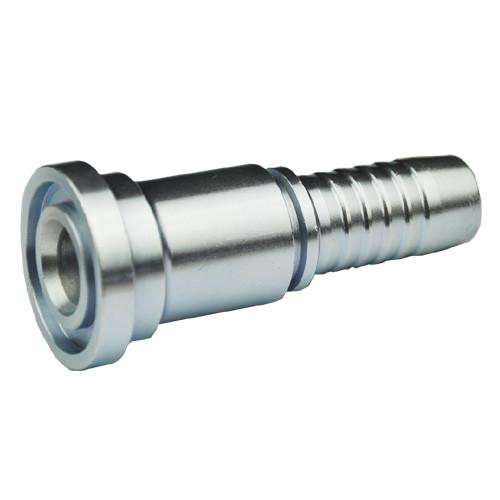

Carbon Steel Hydraulic Flange Fittings Sae Flange Adapter Sae J516

Brand Name : XD

Model Number : 87611

Place of Origin : NINGBO CHINA

MOQ : negotiable

Price : negotiable

Payment Terms : D/P, L/C, T/T

Supply Ability : 100000 Piece/Pieces per Month hydraulic reducer pipe reducing fitting

Delivery Time : wihtin 30 days or as percustomers' requlement.

Packaging Details : export carton, wood pallet

material : Carbon Steel；Stainless steel

Pipe Size : 3-60（mm）

customized processing : Yes

mounting type : Bite type fitting

Contact Now

​SAE flange 6000PSI rubber hose connection (ISO 12151-3--SAE J516)

  • DIN Hydraulic Fittings
  • BSP Thread Adapter
  • JIC Hydraulic Adapters
  • Metric Hydraulic Adapters
  • SAE Flange Adapter
  • Hydraulic Hose Fittings JIC
  • BSP Hydraulic Fittings
  • Metric Hydraulic Hose Fittings
  • SAE Flange Fittings
  • Reusable Hose Fittings
  • Interlock Hose Fittings
  • Socketless Hose Fittings
  • Hydraulic Hose Ferrule

Carbon Steel Hydraulic Flange Fittings Sae Flange Adapter Sae J516

PART NO. FLANGE SIZE HOSE BORE DIMENSIONS
DN DASH A C D L
87611-08-08 1/2" 12 08 47 31.7 24 7.75
87611-12-10 3/4" 16 10 50.5 41.3 32 8.76
87611-12-12 3/4" 20 12 51 41.3 32 8.76
87611-16-12 1" 20 12 51 41.3 38 9.53
87611-16-16 1" 25 16 57 47.6 38 9.53
87611-16-20 1" 32 20 61 47.6 38 9.53
87611-20-16 1.1/4" 25 16 65 54 44 10.29
87611-20-20 1.1/4" 25 16 66 54 44 10.29
87611-24-20 1.1/2" 32 20 75 63.5 51 12.57
87611-24-24 1.1/2" 40 24 75 63.5 51 12.57
87611-32-24 2" 40 24 85 79.4 67 12.57
87611-32-32 2" 50 32 85 79.4 67 12.57

Note: 1.For use with braided hoses.

2.If use with spiral hoses, hose fitting series number is 87612-xx-xx.

We are specialized in all kinds of hydraulic hose fittings, adapters, ferrules, flanges.

We can provide OEM service and develop new products according to customer's drawings and samples.

  1. Material: carbon steel, stainless steel, brass, etc.
  2. Surface treatment: Zinc plated, Zn-Ni plated, Cr3, Cr6 plated
  3. Standard:SAE, DIN, ISO, BS.
  4. Thread: metric, bsp, bspt, npt, jic, sae, orfs, npsm, etc.
