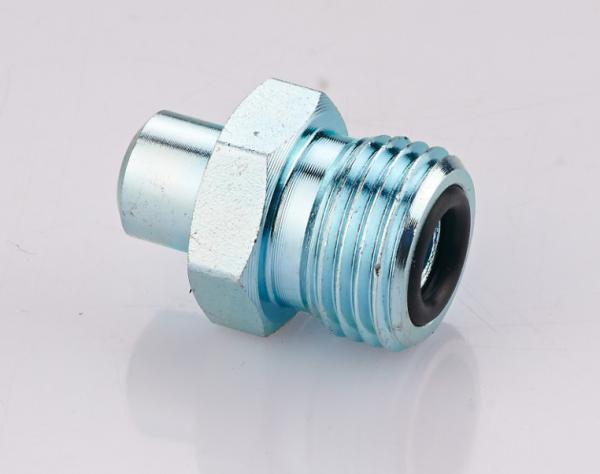

Male Metric Hydraulic Adapters / Metric O Ring Hydraulic Fittings

Brand Name : xindu

Model Number : 1EW

Place of Origin : Zhejiang, China (Mainland)

MOQ : negotiable

Price : negotiable

Payment Terms : D/P, L/C, T/T

Supply Ability : 100000 Piece/Pieces per Month hydraulic reducer pipe reducing fitting

Delivery Time : wihtin 30 days or as percustomers' requlement.

Packaging Details : export carton, wood pallet

Material : Carbon Steel, Carbon steel / Stainless Steel 316 & 304

Connection : Male

Technics : cold-Forged/ Forged

Shape : Equal

Surface Treatment : Zinc / ZnNi / Nickel Plated / Black / Passivation

Color : Yellow / Silver/ Black/ Nature

Type : Nipple

THREAD : METRIC

Contact Now

Metric male O-Ring / BUTT-WELD TUBE METRIC ADAPTERS

  • DIN Hydraulic Fittings
  • BSP Thread Adapter
  • JIC Hydraulic Adapters
  • Metric Hydraulic Adapters
  • SAE Flange Adapter
  • Hydraulic Hose Fittings JIC
  • BSP Hydraulic Fittings
  • Metric Hydraulic Hose Fittings
  • SAE Flange Fittings
  • Reusable Hose Fittings
  • Interlock Hose Fittings
  • Socketless Hose Fittings
  • Hydraulic Hose Ferrule

Male Metric Hydraulic Adapters / Metric O Ring Hydraulic Fittings

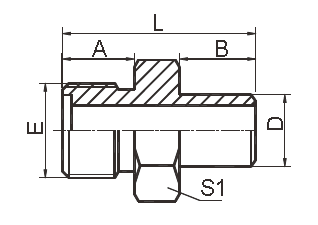

PART NO. THREAD TUBE O.D. O-RING DIMENSIONS
E E A B D L S
1EW-12-06 M12X1.25 6 8X1.9 11 8 6 24 14
1EW-14-08 M14X1.5 8 10X1.9 11 8 8 25 17
1EW-16-10 M16X1.5 10 11X1.9 11 8 10 25 17
1EW-18-12 M18X1.5 12 13X1.9 11 12 12 29 19
1EW-22-14 M22X1.5 14 16X2.4 12 12 14 32.5 24
1EW-27-18 M27X1.5 18 20X2.4 13 12 18 35 30
1EW-30-22 M30X1.5 22 24X2.4 14 14 22 39 32
1EW-36-28 M36X2 28 30X3.1 16 16 28 43 38
1EW-39-30 M39X2 30 32X3.1 18 16 30 47 41
1EW-42-34 M42X2 34 35X3.1 20 16 34 49 46
1EW-45-38 M45X2 38 38X3.1 21 18 38 51 46
1EW-52-42 M52X2 42 40X3.1 22 18 42 55 55

Note:The parameter of E end O-Ring is ring outside diameter and ring width.

We are specialized in all kinds of hydraulic hose fittings, adapters, ferrules, flanges.

We can provide OEM service and develop new products according to customer's drawings and samples.

  1. Material: carbon steel, stainless steel, brass, etc.
  2. Surface treatment: Zinc plated, Zn-Ni plated, Cr3, Cr6 plated
  3. Standard:SAE, DIN, ISO, BS.
  4. Thread: metric, bsp, bspt, npt, jic, sae, orfs, npsm, etc.
